Permit Package Image

NATIONAL QSR Franchise

Project Details

  • Service: Scan to BIM + Permit Drawing Package

  • Modeling Level: LOD 350

  • Sector: Retail / Food Service

  • Project Size: ~2,000 sq.ft

  • Timeline: 2 weeks

  • Deliverable: Architecture + MEP permit sets aligned with franchise brand standards

Impact

  • Permit Readiness: Zero major revisions

  • Turnaround Time: ~50% time savings

  • Cost Savings: ~35% of industry average

Key Benefits Delivered

  • Single streamlined process: Removes common gaps from communication inconsistencies

  • Fully Revit-native deliverables: Enables client reuse and updates

  • Brand-compliant layouts matching franchise standards to the letter

  • Accelerated submission ready for city intake

Franchises Retail FitOut Page

QSR Franchise EXPANSION

Project Details

  • Service: Interior Revit Modeling & Visualization

  • Modeling Level: LOD 350

  • Sector: Retail / Food Service

  • Project Size: ~2,000 sq.ft

  • Timeline: 1 week

  • Deliverable: Revit-based interior model with client-standard finishes and layout for internal design alignment

Impact

  • Turnaround Time: ~60% time savings

  • Cost Savings: ~40% of industry average

Key Benefits Delivered

  • 3D visualization of equipment layout and traffic flow before any construction began

  • Consistent branding across franchise locations through accurate modeling of finishes and fixtures

  • Accelerated client-side decision-making thanks to camera-ready Revit views

  • Integrated seamlessly into the broader permit and construction documentation process

Scan to Bim 1

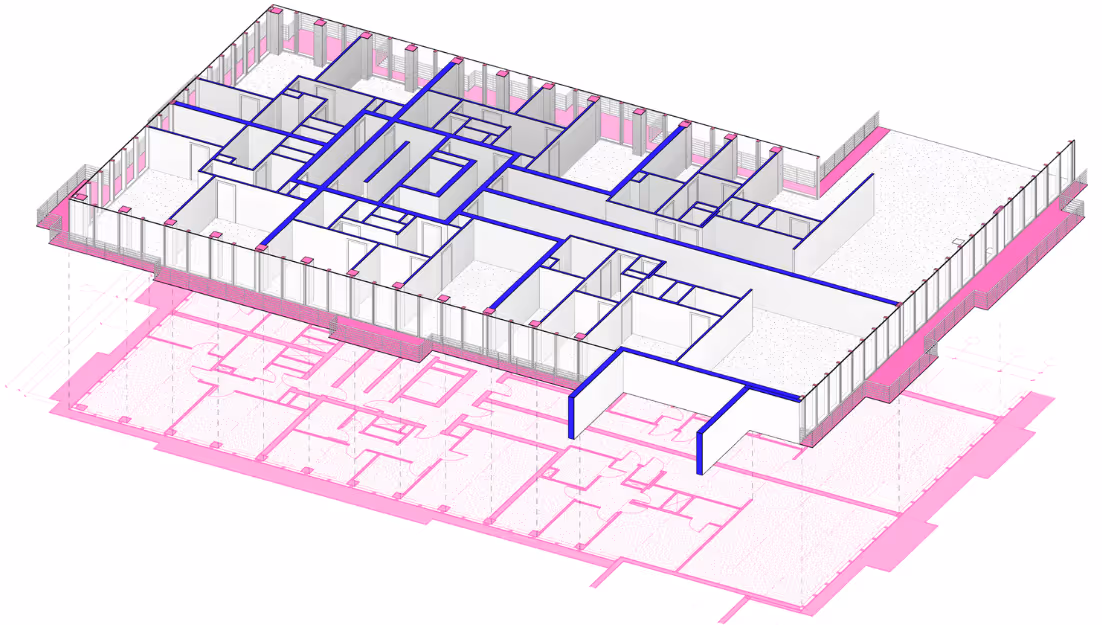

Scan to Bim 2

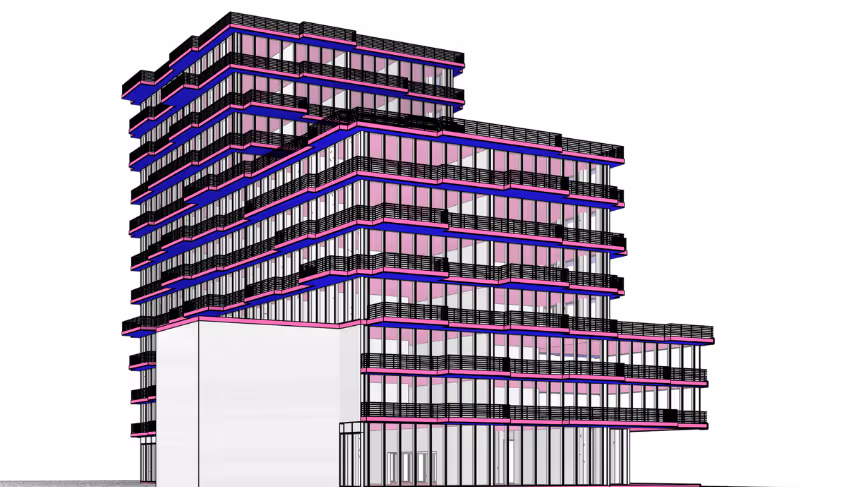

Scan to Bim 3

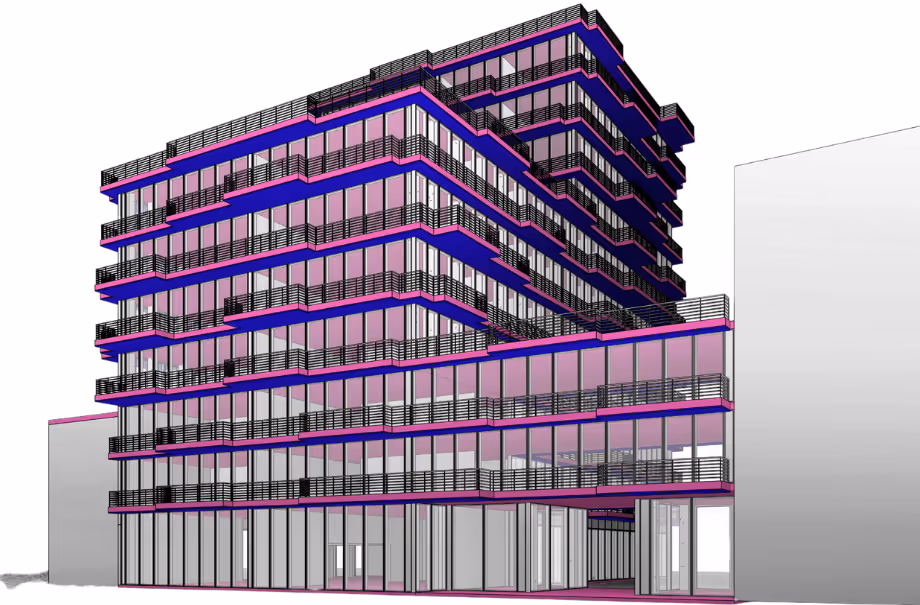

Scan to Bim 4

PRIVATE RESIDENTIAL ESTATE

Project Details

  • Service: Scan to BIM

  • Modeling Level: LOD 300

  • Sector: Residential

  • Project Size: ~64,500 sq.ft

  • Timeline: 5-6 weeks

  • Deliverable: Full interior and façade Revit model for renovation support

Impact

  • Turnaround Time: ~30% time savings

  • Cost Savings: ~25% of industry average

Key Benefits Delivered

  • Precise input for renovation planning: Model fully aligned with proposed design scope

  • Accelerated delivery: Ensured design team had verified base model on time

  • Reduced coordination complexity: BIMWORKS served as a single point of accountability

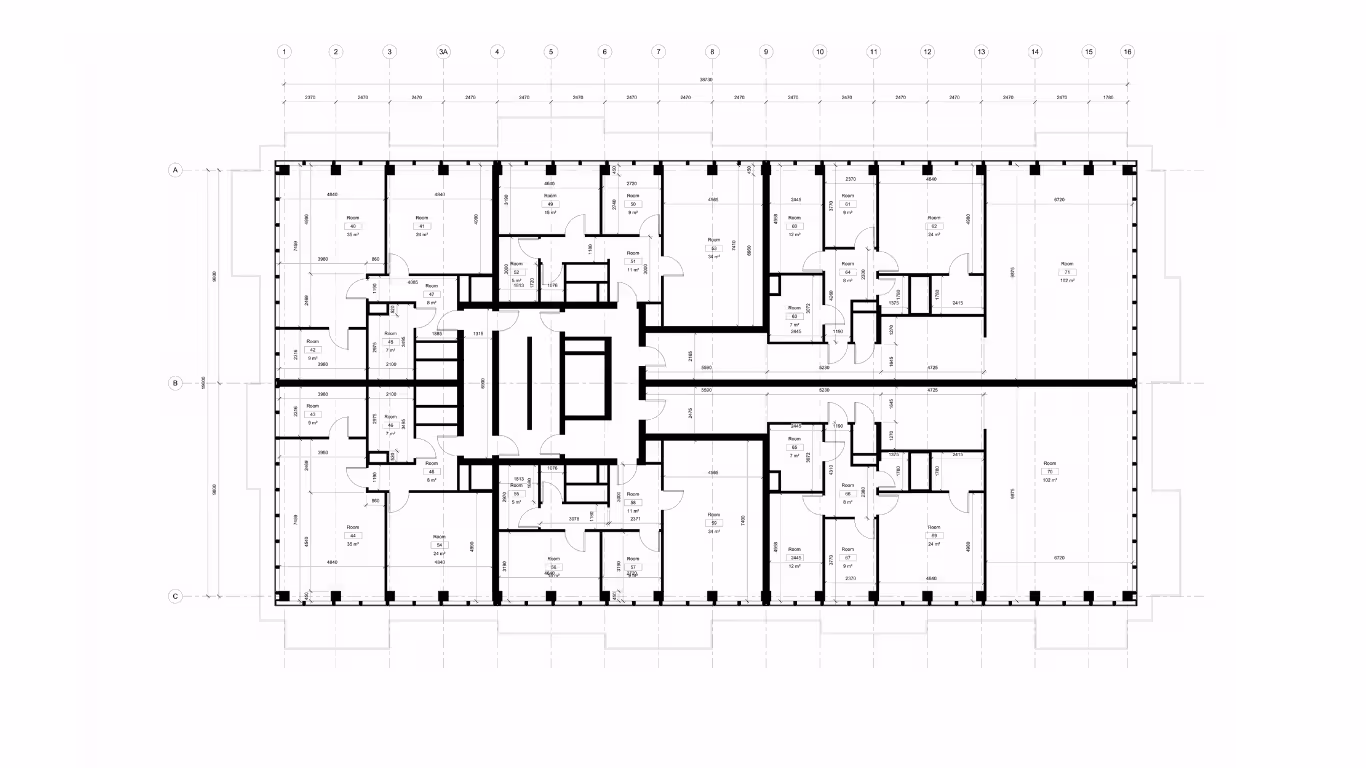

Cad to bim 2
Cad to bim 1

OFFICE BUILDING RENOVATION

Project Details

  • Service: Scan to BIM

  • Modeling Level: LOD 300

  • Sector: Commercial / Office

  • Project Size: ~50,000 sq.ft

  • Timeline: 5-6 weeks

  • Deliverable: Interior and façade Revit model for renovation planning

Impact

  • Turnaround Time: ~30% time savings

  • Cost Savings: ~25% of industry average

Key Benefits Delivered

  • Clean, accurate geometry across entire 50,000 sq.ft building

  • Time-efficient delivery thanks to streamlined scanning and modeling pipeline

  • Easy-to-use Revit files enabled the client’s architects to begin work immediately

  • Detailed scans and models avoid early-stage redesigns reaching development faster

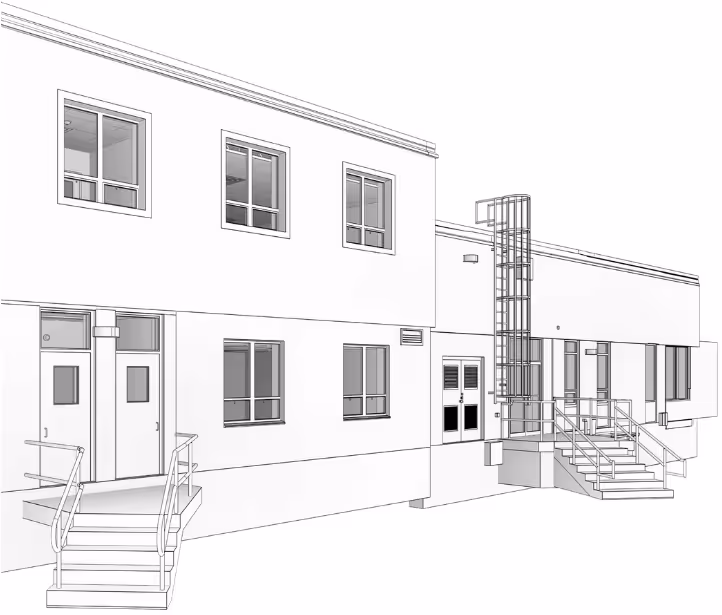

Scn to Bim 1Scn to Bim 3
Scn to Bim 2

INDUSTRIAL BUILDING RESTORATION

Project Details

  • Service: Scan to BIM

  • Modeling Level: LOD 300

  • Sector: Industrial

  • Project Size: ~25,000 sq.ft

  • Timeline: 2 weeks

  • Deliverable: Interior and façade Revit model for renovation planning

Impact

  • Turnaround Time: ~65% time savings

  • Cost Savings: ~50% of industry average

Key Benefits Delivered

  • Seamless Revit collaboration via a shared file environment

  • Rapid turnaround with minimal revisions

  • Freed up client's internal team for higher-value tasks

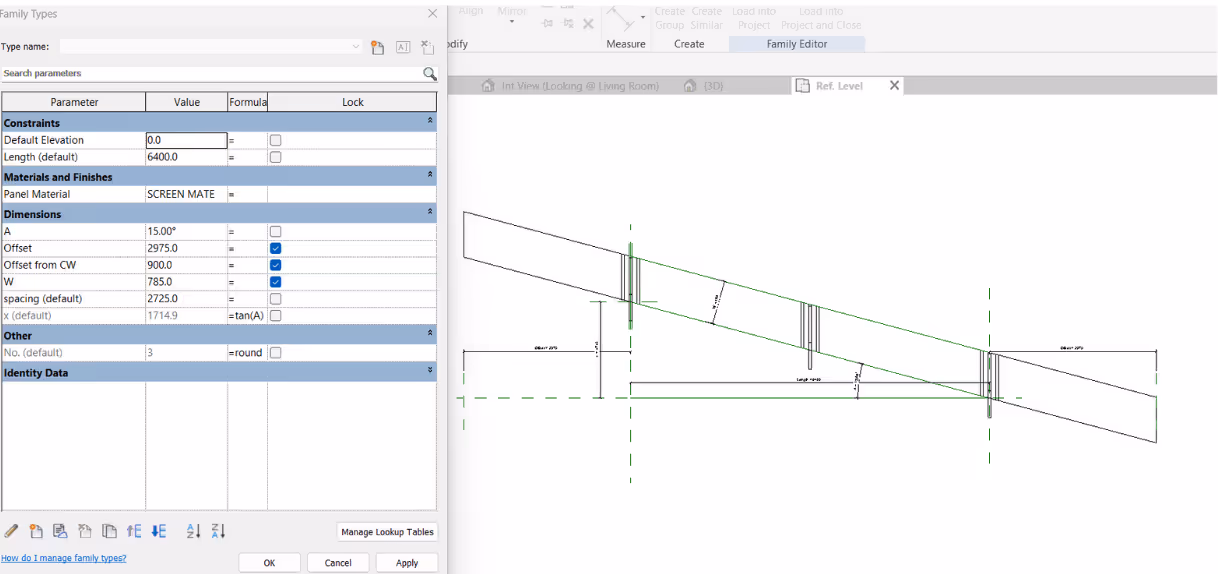

Revit Family Image 1

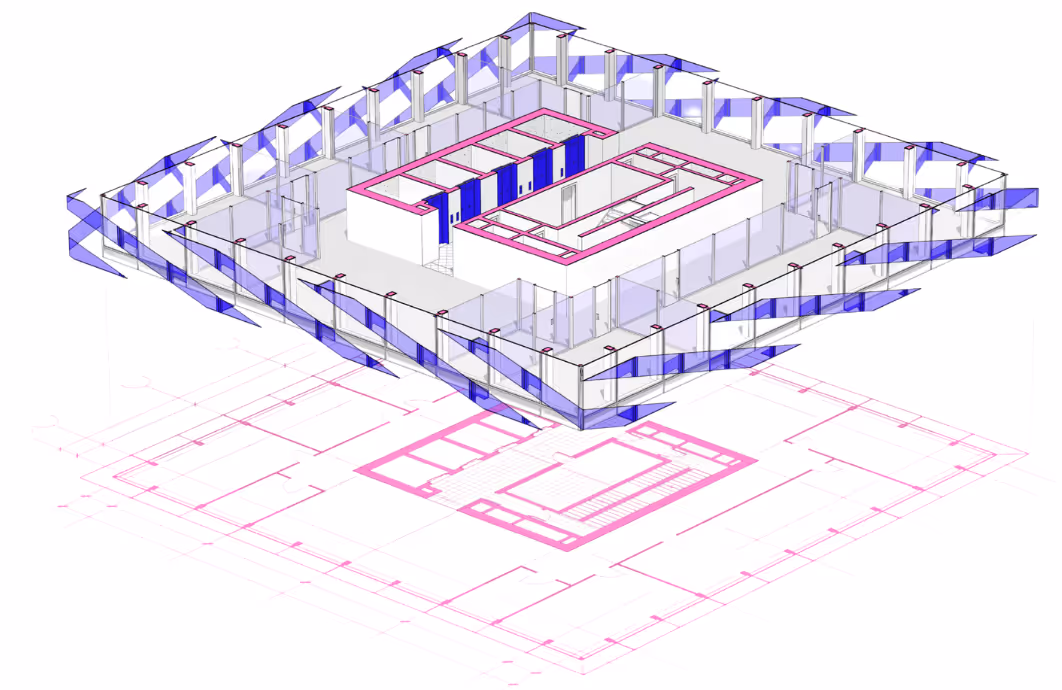

REVIT FAMILY CREATION Layout ImageBimworks Image

OFFICE TOWER SHADING PANEL

Project Details

  • Service: Revit Family Creation

  • Modeling Level: Custom Parametric Family

  • Sector: Commercial / Office Tower

  • Project Size: 43-storey façade-mounted shading system

  • Timeline: 4 days

  • Deliverable: Reusable family for panel system with parametric flexibility

Impact

  • Turnaround Time: ~50% time savings

  • Cost Savings: ~65% of industry average

Key Benefits Delivered

  • Manual assembly of facade components replaced by parametric design to allow for flexible sizing, rotation, and placement across all tower faces

  • Integrated material assignments and detail levels ensured visual accuracy from concept to construction documents

  • Reusable across levels and future projects, reducing future documentation time

  • Built in native Revit environment for immediate plug-and-play use by client’s team

  • Revit model performance maintained by avoiding inefficient nesting and using optimized lightweight family

THE WORKS.



FRANCHISES

RETAIL PERMIT PACKAGE

FRANCHISES

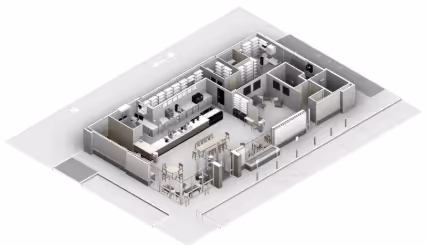

RETAIL FIT-OUT

RESIDENTIAL

SCAN TO BIM

OFFICE BUILDING

AS-BUILT CAD TO BIM

INDUSTRIAL

SCAN TO BIM

OFFICE BUILDING FACADE

REVIT FAMILY CREATION

THE WORKS

FRANCHISES - RETAIL PERMIT PACKAGE

Retail Permit Package Transparent ImageRetail Permit Package Transparent Image 2
Retail 2

NATIONAL QSR Franchise

Project Details

  • Service: Scan to BIM + Permit Drawing Package

  • Modeling Level: LOD 350

  • Sector: Retail / Food Service

  • Project Size: ~2,000 sq.ft

  • Timeline: 2 weeks

  • Deliverable: Architecture + MEP permit sets aligned with franchise brand standards

Impact

  • Permit Readiness: Zero major revisions

  • Turnaround Time: ~50% time savings

  • Cost Savings: ~35% of industry average

Key Benefits Delivered

  • Single streamlined process: Removes common gaps from communication inconsistencies

  • Fully Revit-native deliverables: Enables client reuse and updates

  • Brand-compliant layouts matching franchise standards to the letter

  • Accelerated submission ready for city intake

FRANCHISES - RETAIL FIT-OUT

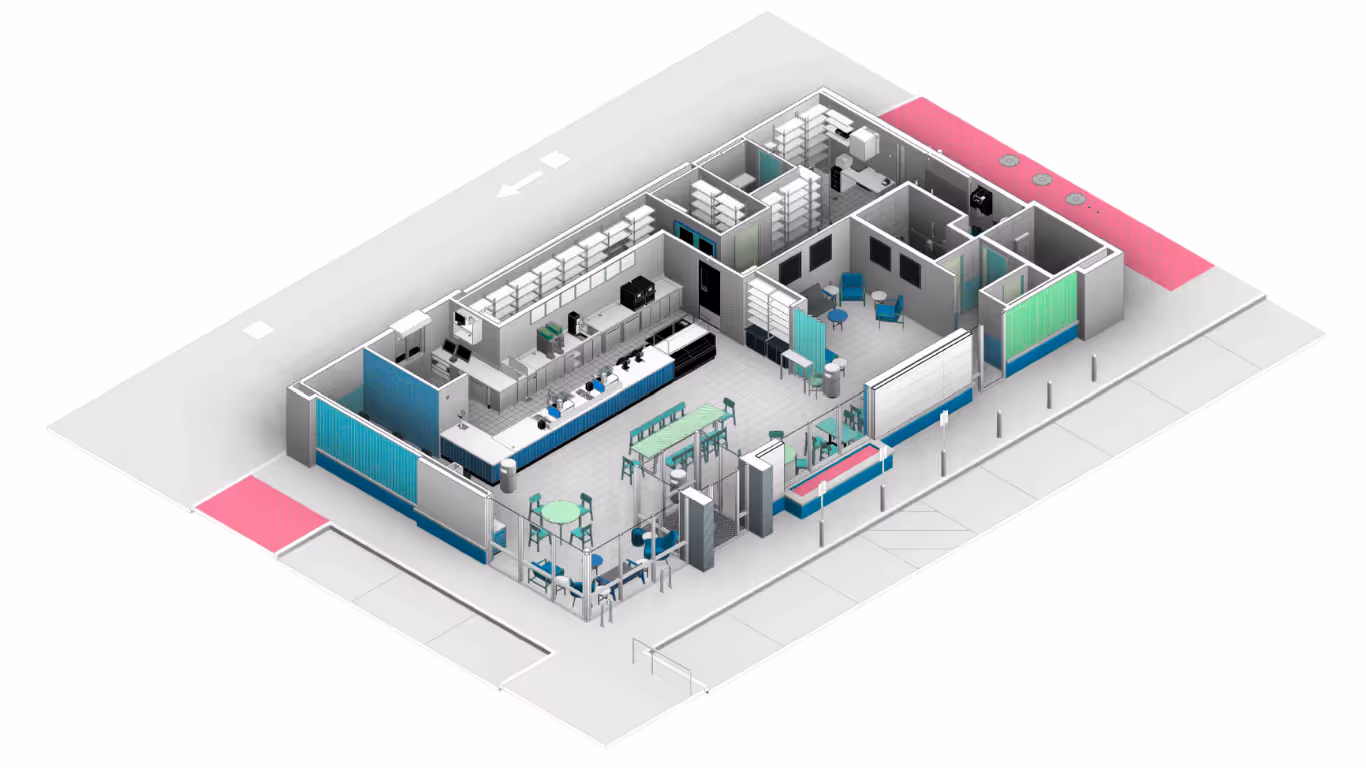

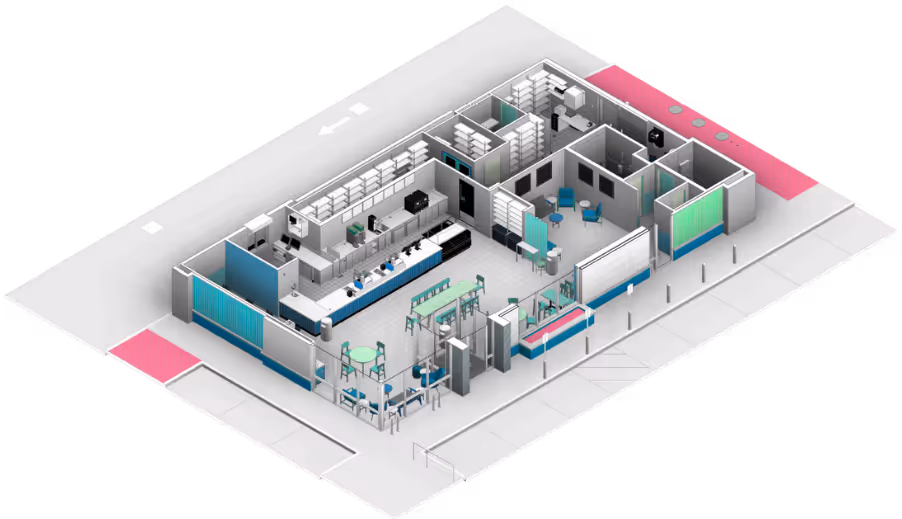

The Works - Retail Fit-Out Transparent

QSR Franchise EXPANSION

Project Details

  • Service: Interior Revit Modeling & Visualization

  • Modeling Level: LOD 350

  • Sector: Retail / Food Service

  • Project Size: ~2,000 sq.ft

  • Timeline: 1 week

  • Deliverable: Revit-based interior model with client-standard finishes and layout for internal design alignment

Impact

  • Turnaround Time: ~60% time savings

  • Cost Savings: ~40% of industry average

Key Benefits Delivered

  • 3D visualization of equipment layout and traffic flow before any construction began

  • Consistent branding across franchise locations through accurate modeling of finishes and fixtures

  • Accelerated client-side decision-making thanks to camera-ready Revit views

  • Integrated seamlessly into the broader permit and construction documentation process

RESIDENTIAL - SCAN TO BIM

Scan to Bim 1Scan to Bim 2
Scan to Bim 3Scan to Bim 4

PRIVATE RESIDENTIAL ESTATE

Project Details

  • Service: Scan to BIM

  • Modeling Level: LOD 300

  • Sector: Residential

  • Project Size: ~64,500 sq.ft

  • Timeline: 5-6 weeks

  • Deliverable: Full interior and façade Revit model for renovation support

Impact

  • Turnaround Time: ~30% time savings

  • Cost Savings: ~25% of industry average

Key Benefits Delivered

  • Precise input for renovation planning: Model fully aligned with proposed design scope

  • Accelerated delivery: Ensured design team had verified base model on time

  • Reduced coordination complexity: BIMWORKS served as a single point of accountability

OFFICE BUILDING - AS-BUILT CAD TO BIM

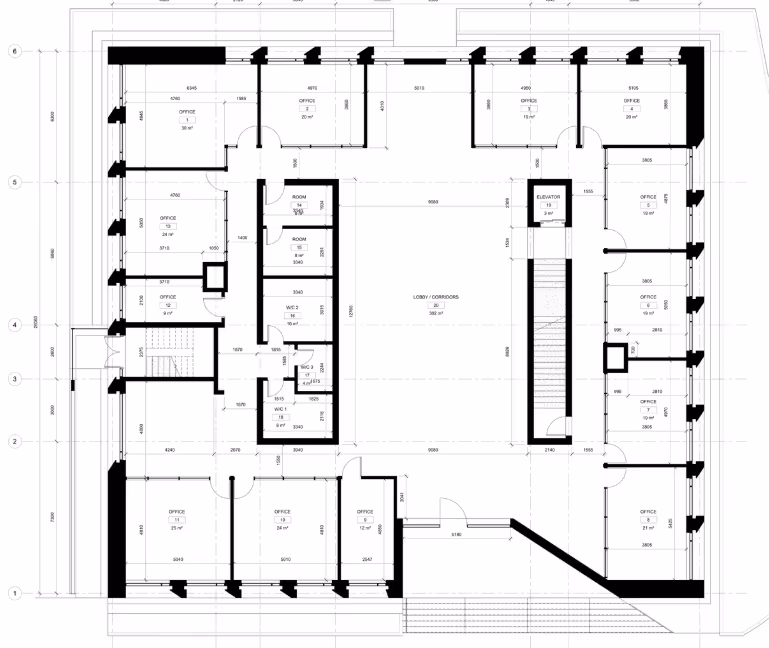

Cad to bim 2Cad to bim 1

OFFICE BUILDING RENOVATION

Project Details

  • Service: Scan to BIM

  • Modeling Level: LOD 300

  • Sector: Commercial / Office

  • Project Size: ~50,000 sq.ft

  • Timeline: 5-6 weeks

  • Deliverable: Interior and façade Revit model for renovation planning

Impact

  • Turnaround Time: ~30% time savings

  • Cost Savings: ~25% of industry average

Key Benefits Delivered

  • Clean, accurate geometry across entire 50,000 sq.ft building

  • Time-efficient delivery thanks to streamlined scanning and modeling pipeline

  • Easy-to-use Revit files enabled the client’s architects to begin work immediately

  • Detailed scans and models avoid early-stage redesigns reaching development faster

INDUSTRIAL - SCAN TO BIM

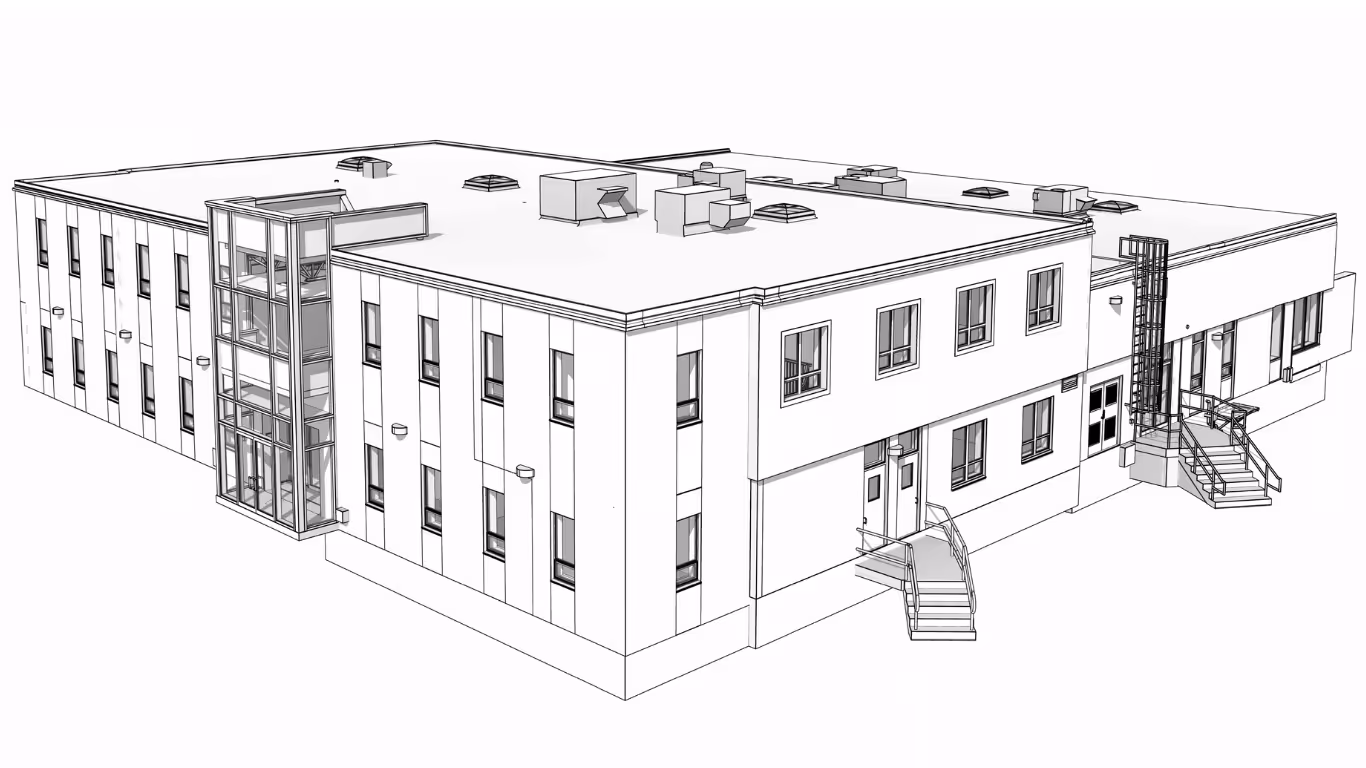

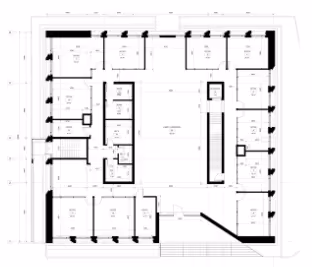

Scan to Bim Project  Small Img

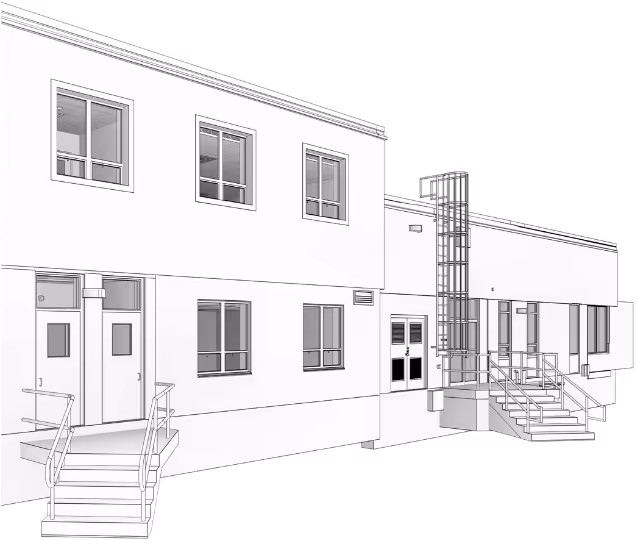

The Works - Industrial Scan to BIM

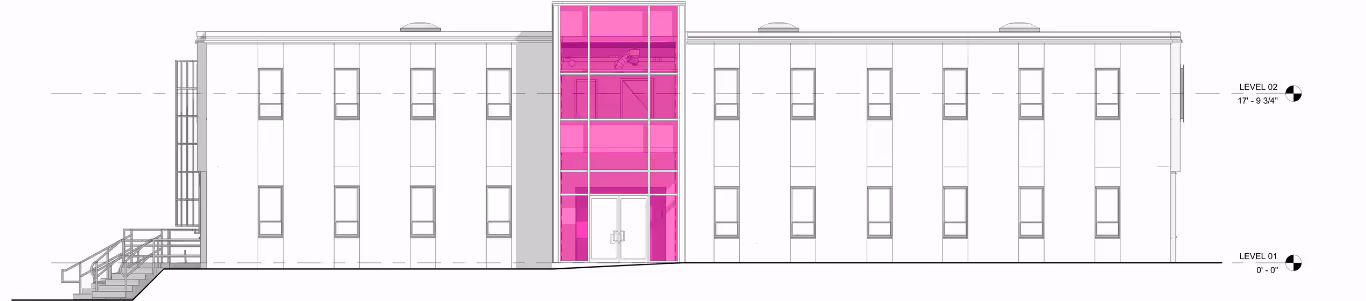

Scn to Bim 2

OFFICE BUILDING RENOVATION

Project Details

  • Service: Scan to BIM

  • Modeling Level: LOD 300

  • Sector: Commercial / Office

  • Project Size: ~50,000 sq.ft

  • Timeline: 5-6 weeks

  • Deliverable: Interior and façade Revit model for renovation planning

Impact

  • Turnaround Time: ~30% time savings

  • Cost Savings: ~25% of industry average

Key Benefits Delivered

  • Clean, accurate geometry across entire 50,000 sq.ft building

  • Time-efficient delivery thanks to streamlined scanning and modeling pipeline

  • Easy-to-use Revit files enabled the client’s architects to begin work immediately

  • Detailed scans and models avoid early-stage redesigns reaching development faster

OFFICE BUILDING FACADE - REVIT FAMILY CREATION

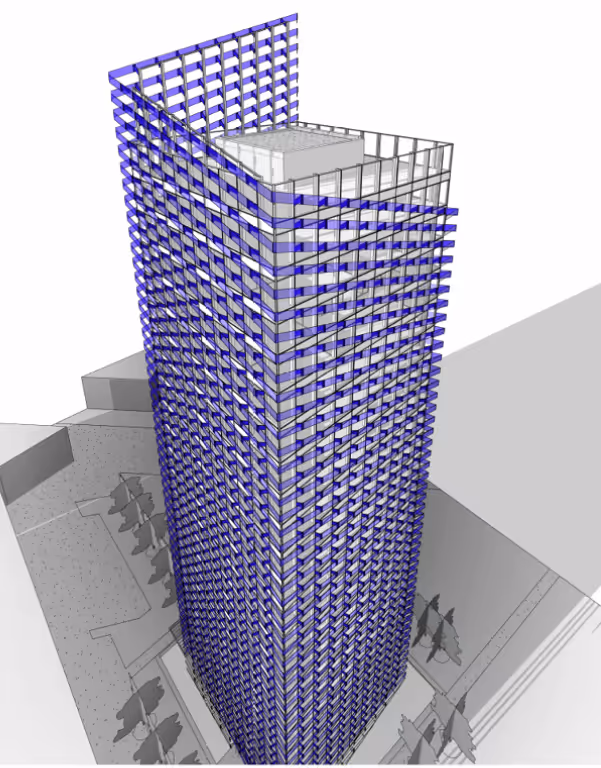

Bimworks ImageREVIT FAMILY CREATION Layout ImageRevit Family Image 1

OFFICE TOWER SHADING PANEL

Project Details

  • Service: Revit Family Creation

  • Modeling Level: Custom Parametric Family

  • Sector: Commercial / Office Tower

  • Project Size: 43-storey façade-mounted shading system

  • Timeline: 4 days

  • Deliverable: Reusable family for panel system with parametric flexibility

Impact

  • Turnaround Time: ~50% time savings

  • Cost Savings: ~65% of industry average

Key Benefits Delivered

  • Manual assembly of facade components replaced by parametric design to allow for flexible sizing, rotation, and placement across all tower faces

  • Integrated material assignments and detail levels ensured visual accuracy from concept to construction documents

  • Reusable across levels and future projects, reducing future documentation time

  • Built in native Revit environment for immediate plug-and-play use by client’s team

  • Revit model performance maintained by avoiding inefficient nesting and using optimized lightweight family
